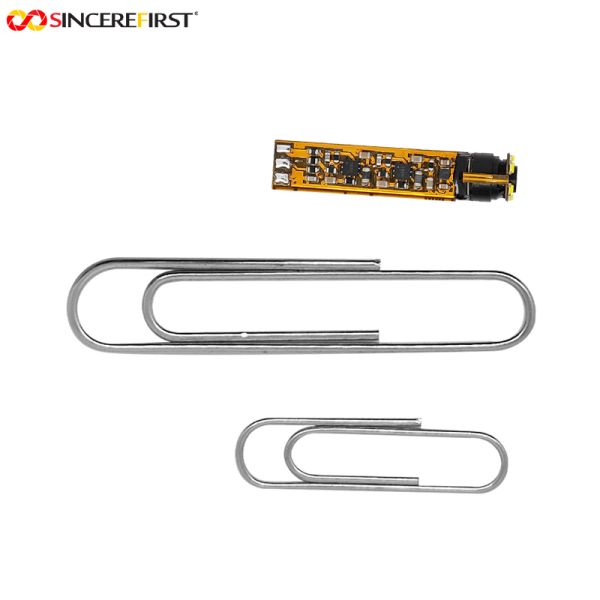

30mm-80mm Depth of Field GC5035 Sensor 5MP Endoscope Camera Module
Product Description:
This 30mm-80mm Depth of Field GC5035 Sensor 5MP Endoscope Camera Module.Equipped with a 5-megapixel GC5035 sensor, it delivers razor-sharp, highly detailed images. Combined with an 82° wide-angle lens and a 30–80mm extended depth of field, it ensures a wide, consistently clear field of view inside body cavities, significantly improving inspection efficiency and operational continuity.The module integrates 6 high-brightness LEDs to provide bright, uniform intracavity illumination and eliminate shadow interference. Its compact ultra-slim Φ7.0mm design is compatible with various minimally invasive instruments, meeting the clinical demand for minimal trauma paired with a broad field of view.Featuring dual-voltage intelligent power supply (5V for the main control unit / 3.3V for the LEDs), it balances system compatibility with low power consumption control, ensuring stable long-term operation.It is suitable for professional endoscopic scenarios with stringent requirements for imaging quality and operational experience, such as gastroenterology, urology, and gynecology departments.
Features:
1.Ultra-HD Detail Rendering:Equipped with a 5MP GC5035 sensor, it clearly displays the fine structures of tissues, providing a reliable visual basis for diagnosis and operation.
2.Wide Field of View & Consistent Clear Imaging:Boasting an 82° wide-angle lens combined with a 30–80mm depth of field, it delivers a large single-frame coverage. No repeated focusing is needed when moving the lens, ensuring smooth and efficient operation.
3.Bright & Uniform Illumination:Featuring a ring-shaped layout of 6 LEDs, it provides ample and shadow-free intracavity illumination, guaranteeing true color reproduction and clean imaging, thus enhancing observation comfort and accuracy.
4.Compact & Low-Power Design:With an ultra-slim Φ7.0mm diameter, it is compatible with minimally invasive instruments. The dual-voltage power supply optimizes power consumption and heat generation, supporting stable long-term operation.

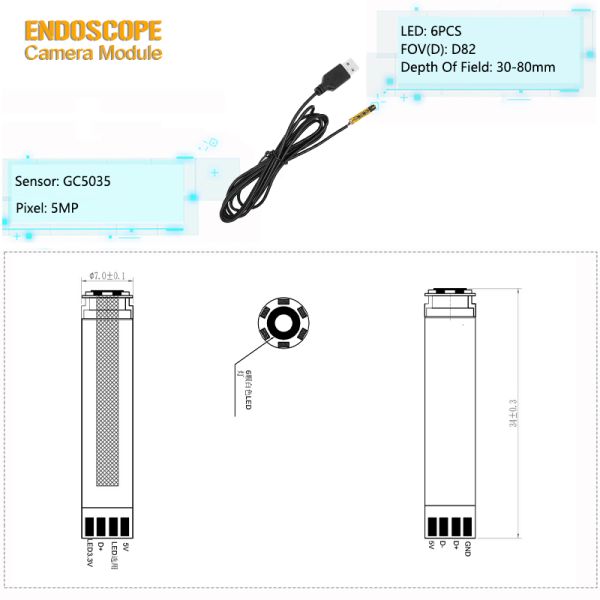

Technical Parameters:
| Product Name |
Endoscope Camera Module |
|
Sensor
|
GC5035 CMOS Sensor
|
| Piexl |
5MP |
|
White balance
|
Automatic |
|
FOV
|
82 |
|
Depth of Field
|
30-80mm |
|
Keywords
|
GC5035 Endoscope Camera Module
|
|
Warranty
|
10 Years
|
|
LED
|
6PCS |
|
Brand Name
|
SINCEREFIRST
|
Applications:
1.Gastrointestinal Endoscopic Diagnosis and Treatment:Suitable for examinations such as gastroscopy and colonoscopy, its high-definition imaging and wide field of view facilitate the observation of gastrointestinal mucosal lesions, polyps, and early tumor screening.
2.Urological and Gynecological Minimally Invasive Surgery:Integrated into devices like cystoscopes and hysteroscopes, it provides a clear surgical field in narrow lumens, supporting stone removal, tissue biopsy, and endoluminal interventional therapy.
3.Otolaryngological Precision Examination: Embedded in nasopharyngoscopes and laryngoscopes, it helps doctors directly observe nasal cavity structures, vocal cord conditions, and ear canal interiors, applicable for inflammation assessment and foreign body localization.
4.Industrial Precision Endoscopic Inspection: Ideal for internal visual inspection of precision instruments, mechanical pipelines, electronic components, etc., assisting in defect detection, assembly verification, and equipment maintenance.
Customized Process:
1. You can provide drawings or samples, as well as request documentation and developed by our engineering staff.
2. Communication or Meeting
3. We will communicate with you in detail to determine somewhat product you need and try to set the most suitable product for you
according to your needs.
4. Sample Development
5. Determine the details of the development sample and the delivery time. Communicate at any time to ensure smooth progress.
6. Sample Testing
7. Test and age on your application, feedback test results, no need to modify, mass production.
About US:
Cooperative Brands & Customers:
Why Chooes US:
Detail Pictures:
